Cargo’s allocation system distributes leads across your sales organization based on configurable rules. This guide covers each component—from importing team members to tracking allocation history.

​
Members

When you connect a tool containing your sales organization (such as a CRM), Cargo automatically imports team members and keeps them synchronized. This creates a unified view of your team across your workspace. You can enhance member profiles with custom metadata—such as spoken languages, mailboxes, or specializations—to personalize how leads are assigned. Inspect available members

​
Territories

Territories group members into logical units that reflect your sales structure. Common examples include:
  • Geographic regions (EMEA, APAC, Americas)
  • Industry verticals (Healthcare, Finance, Technology)
  • Company size segments (Enterprise, Mid-market, SMB)
Each territory can have a fallback member who receives allocations when all other members reach their capacity limits. Creating a territory

​
Capacity

Capacity configurations set maximum allocation limits per member within a defined timeframe. This ensures fair workload distribution and prevents rep overload. For example, you might set a capacity of 3 leads per day to match your team’s average sales cadence.
Capacities are calculated independently. A member can be available for allocation under one capacity configuration while being fully booked under another.
Creating a capacity

​
Allocation node

The allocation node is where leads get assigned to members. By default, it uses round-robin distribution, spreading assignments evenly across available reps. You can configure the allocation node to match leads based on:
  • Email address — Route based on the lead’s email domain
  • Territory — Assign to members within a specific territory
  • Static list — Choose from a predefined set of members
  • Connector matching — Use data from connected tools to determine ownership
The allocation node requires a reliable record ID to track each lead assignment internally.
Creating an allocation

​
Capacity model mapping

Capacity model mapping lets Cargo calculate each member’s availability from records in a transactional model (for example, open deals). Instead of using only static limits, you can count active workload per owner and use that count during allocation.

​
In very simple terms

Think of this as “how many plates each rep is already carrying.”
  • Without model mapping: Cargo only sees assignment counts in this capacity rule. If two reps are both under the limit, they can both keep getting leads, even if one rep already has many open deals in your CRM.
  • With model mapping: Cargo checks your model (for example, HubSpot deals), counts open deals per rep, and treats reps with fewer open deals as more available.
Example:
  • Rep A has 12 open deals, Rep B has 3 open deals.
  • Without mapping: both may look similarly available if this capacity rule has not reached its own count.
  • With mapping: Rep B is clearly less busy, so Rep B is prioritized.
Data models used for capacity mapping must be transactional objects (like CRM deals), where one record represents one allocation unit.
Use capacity model mapping when:
  • One record should equal one unit of rep workload (for example, one open deal)
  • You need availability based on live pipeline state, not only a fixed daily cap
  • You have a reliable owner field that maps to member IDs from the same connector

​
Configuration walkthrough

  1. Select a transactional model that represents active workload (for example, HubSpot deals).
  2. Add filters for records that should count against capacity (for example, dealstage is not closedwon and not closedlost).
  3. Choose the owner column from that model (for example, hubspot_owner_id).
  4. Match that owner value to a Revenue Organization member using the connector-specific member ID expression: {{member.ids.<connector_name>}}.
Cargo then counts matching records per member and uses that count to determine who is still available for the next allocation.

​
Worked example

If your capacity model is hubspot__deals:
  • Each open deal counts as one capacity unit
  • Include only deals where dealstage is not closedwon and not closedlost
  • The deal owner field is hubspot_owner_id
  • Members are matched with {{member.ids.hubspot}}
If Rep A has 5 matching open deals and Rep B has 2, Rep B is considered more available and is prioritized by your capacity rules.

​

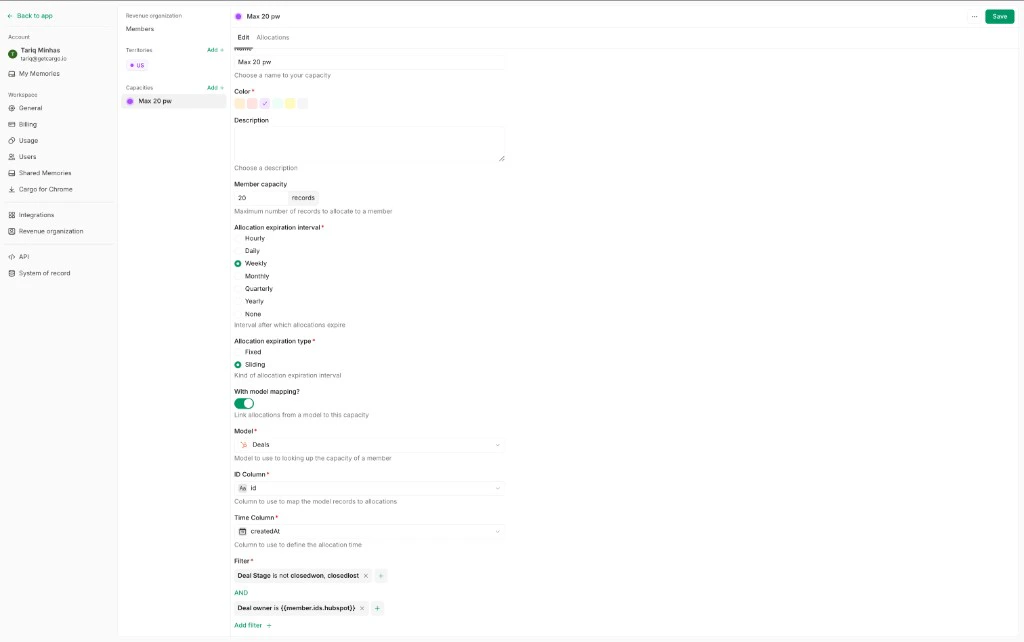

Field guide for this view

FieldWhat it controlsHow to set it for HubSpot deals
Member capacityMaximum allowed workload per member for the selected intervalSet your threshold (for example, 20 records)
Allocation expiration intervalHow often capacity is evaluated/reset (Hourly, Daily, Weekly, etc.)Choose the operating cadence your team uses (for example, Weekly)
Allocation expiration typeWhether the interval is calendar-anchored (Fixed) or rolling from now (Sliding)Use Fixed for calendar windows, Sliding for rolling windows
With model mappingEnables model-based capacity calculationTurn on to base capacity on open deals instead of static assignment count
ModelTransactional model used as workload sourceSelect Deals / hubspot__deals
ID ColumnUnique key for each workload recordUse id
Time ColumnTimestamp used for interval calculationsUse createdAt (or your canonical deal time column)
FilterDefines which records count and who they belong toInclude dealstage not in (closedwon, closedlost) and owner match to {{member.ids.hubspot}}

​
Common pitfalls

  • Using a non-transactional model where one row does not represent one clear workload unit
  • Using the wrong connector key in member.ids.* (for example, salesforce when the model is from HubSpot)
  • Mapping against an owner field with null values or a different ID format than member IDs
Capacity model mapping

​
Allocation history

Every sales organization element—members, territories, and capacities—has a dedicated history screen that logs all allocations. Each entry links to the specific play run that triggered the assignment. Use allocation history to:
  • Verify that distribution rules are working as expected
  • Troubleshoot assignment issues
  • Audit lead routing decisions
Monitoring allocations

​
Allocation fallback

Fallback rules ensure every lead gets assigned, even when primary routing fails. Cargo provides two fallback mechanisms:
  • Territory fallback — Each territory can designate a fallback member who receives allocations when all other members exhaust their capacity.
  • Retry on failure — Configure the allocation node to continue attempting assignment until successful, ensuring no lead is left unassigned.
